K770Ledeburitic, High Chromium Cold Work Tool Steel for Superior Wear Resistance and Toughness
Suitable for various industrial applications, including blanking dies, thread roll dies, punches, coining dies, drawing dies, and upsetting dies, as well as for cutting tools, cutting rolls, and cutting knives.
Industries in detail
SIHARD K770 data sheet
Marketing
Product advantages
SIHARD K770 is a ledeburitic, high chromium cold work tool steel with high and very good combination of wear resistance and toughness.
The SIHARD K770 steel excels itself through the following properties:
- a very good combination of wear resistance and toughness,
- high hardness,
- nitridability and
- high dimensional stability.
Manufacture
SIHARD K770 is made by SIJ Metal Ravne.
Standards & certificates
Material number
1.2379
Ravne
OCR12VML
DIN
X153CrMoV12
AISI/SAE
D2
Properties

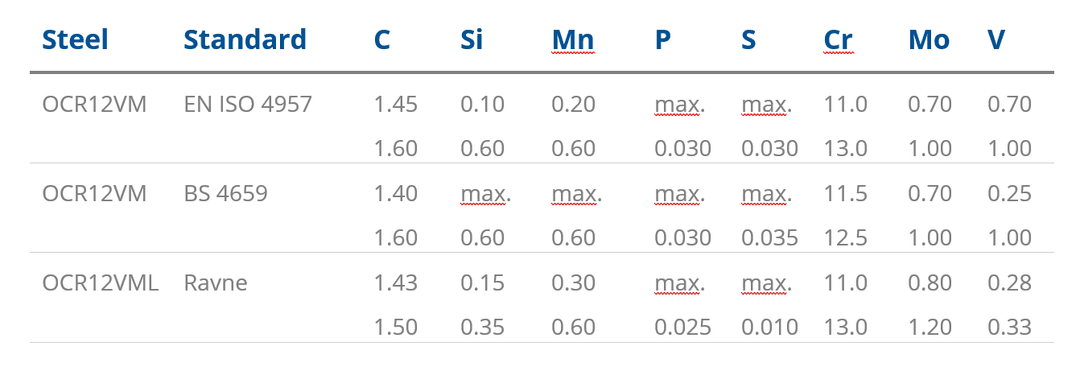

Chemical composition
In weight %
Product forms
Continuous Cooling Transformation (CCT)
Tempering
Hardening
Harden from a temperature of 1020 - 1050°C followed by oil, air quenching or warm bath quenching 500 - 550°C. Hardness after quenching is 62 - 64 HRC.
Forging
Hot forming temperature: 1050 - 850°G.
